WT85 Factory direct 40mm / 50mm Vertical exit stainless steel trench drains Custom

Home / Product / Linear Drains / W85 SERIES / WT85 Factory direct 40mm / 50mm Vertical exit stainless steel trench drains

How Can We Help You ?

"Nothing is best,only better". Better people are sincerely willing to cooperate with new and old customers. Let's hand in hand,and create the bright future together.

+86-576-87422105 Contact Us
  • Designed for efficient vertical drainage in wet area installations.
  • Supports smooth water discharge through a vertical connection.
  • Durable stainless construction delivers reliable drainage performance.

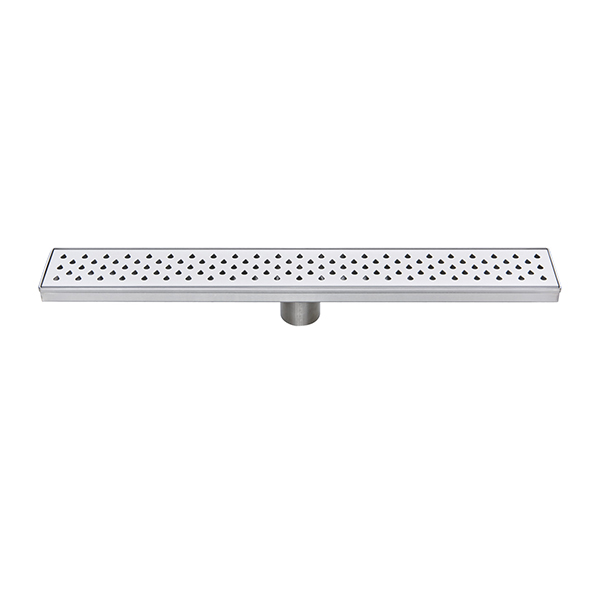

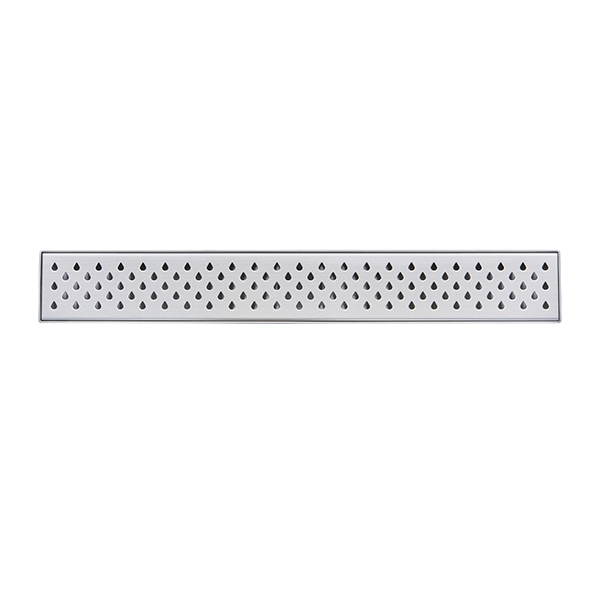

WT85 Factory direct 40mm / 50mm Vertical exit stainless steel trench drains

+86-576-87422105
  • Designed for efficient vertical drainage in wet area installations.
  • Supports smooth water discharge through a vertical connection.
  • Durable stainless construction delivers reliable drainage performance.
  • Description
  • Inquiry

  • The WT85 Factory Direct 40mm / 50mm Vertical Exit Stainless Steel Trench Drain is the kind of drain that simply gets on with the job. The vertical 40mm or 50mm outlet gives you a bit more flexibility during installation, especially when different plumbing setups are involved. Water moves through the long channel without much fuss, and the stainless steel body is built to cope with everyday moisture. Once it's in the floor, you hardly notice it's there, which is usually exactly what you want.

    Material All stainless steel 316 or 304.
    Thickness 1.2mm for basement and 1.5mm for patterns.
    Size in inch 24”,26”,28”,32”,36”,40”,48”,60” in length, the width is 3-3/8”.
    Size in mm 600mm, 900mm, 1200mm, 1500mm in length the width is 85mm.
    Outlet 40mm/ 50mm, vertical outlet and plastic siphon design.
    Capacity 40L/min Additional outlets may be added to increase flow rate
    Surface finished Satin finished, Polished finished, golden finished and bronze finished.
    Accessories Lifting key and strainer including, adjust legs, Adapter and all else for options.
    Customization All size accepted by custom made.
    Cetificate ISO90001-2008, WATERMARK CERTIFICATE.
    Warranty 20 years Guarantee

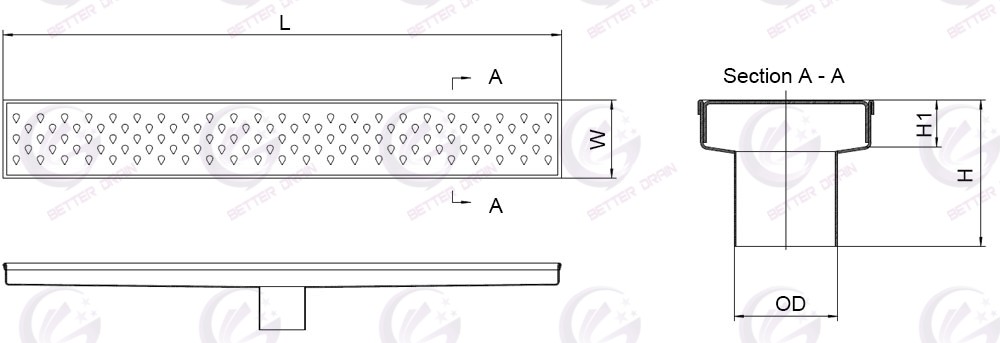

    MODEL（mm） L W H1 H OD
    WT-6085 600mm 85mm 23mm 70mm 50mm
    WT-8085 800mm 85mm 23mm 70mm 50mm
    WT-9085 900mm 85mm 23mm 70mm 50mm
    WT-10085 1000mm 85mm 23mm 70mm 50mm
    WT-12085 1200mm 85mm 23mm 70mm 50mm





    MODEL（inch） L W H1 H OD
    WT-2685
    		660mm 85mm 23mm 70mm 50mm
    WT-3085 762mm 85mm 23mm 70mm 50mm
    WT-3685 914mm 85mm 23mm 70mm 50mm
    WT-4085 1016mm 85mm 23mm 70mm 50mm
    WT-4885 1219mm 85mm 23mm 70mm 50mm
    WT-6085
    		1524mm 85mm 23mm 70mm 50mm
